Storm Joint

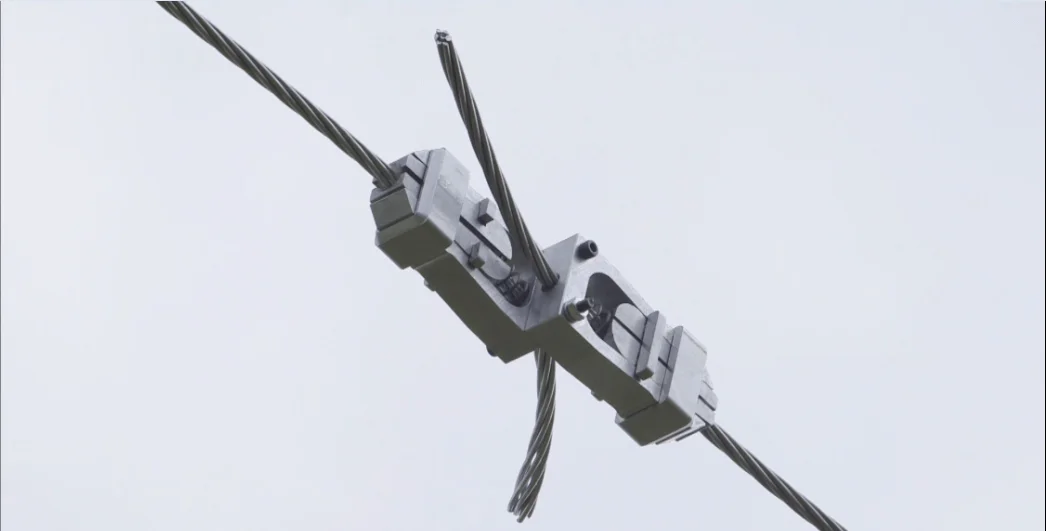

Trial of a new overhead line (OHL) repair process, which is performed fully from the ground. The new method involves using a specialist joint in combination with a pulley system to reconnect and lift the damaged conductors.

Project-on-a-Page summary

Project data

Start date: 01/10/2018
End date: 30/11/2020
Budget: £188,600

In order to minimise the impact storms have on customers, a new temporary overhead line repair process that can be performed fully from the ground is to be trialled. The new method involves using a specialist joint in combination with a pulley system to reconnect and lift the damaged conductors. First, one side of the broken conductor is extended to ensure that both ends can be pushed through the specialist joint. A pulley arrangement is then connected to both sides of the joint using OHL accessories like preforms and snap shackles. Finally, the rope connected to each pulley system is pulled on by a person which gradually lifts the conductor back to its original place. Using extendable OHL tools all excess conductor is cut off and both pulley systems are taken down.

In order to ensure the successful implementation of the emergency joint:

  • The relevant standards, procedures and risk assessments will be developed
  • Bespoke training course and video will be developed to ensure the repairs can be done during a storm
  • Appropriate equipment will be procured to enable the trained teams to carry out the repair
  • Repair process will be optimised throughout the trial
  • Trial delivery strategy will be set up
    • Optimal location of equipment
    • Ownership and maintenance of equipment
    • Communication between dispatch, control, emergency planning and specialist repair teams
  • The new repair method will be integrated into the existing storm response strategy

The main expected learnings will provide insight to:

  • Difficulty of execution of new repair process during storm recovery
  • Improvements to existing storm response strategy
  • Potential improvements to the new repair method (less equipment / resource)
  • Optimal location of the equipment kits and specialist teams to ensure adequate network coverage

Measure of UK Power Networks` storm response performance when the new repair method is used:

  • Customer Minutes Lost (CML)
  • Company reputation
  • Avoided cost whenever new method is used instead of deploying a generator
